Unity XML Documentation Generator

Both Unity and VSTU have yet supported XML Documentation for UPM packages^1 thus there was no API documentation to display in quick info popup within IDEs (Visual Studio, VSCode, etc).

This tool was created to offer a simple workaround for the time being, until the 1st party officially rectifies this situation.

Expected results

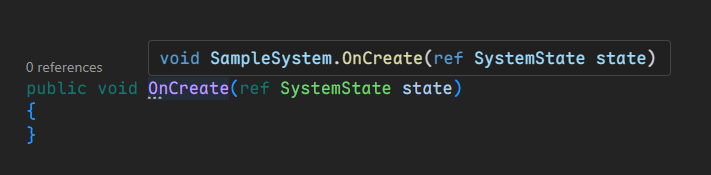

• Before having XML documentation:

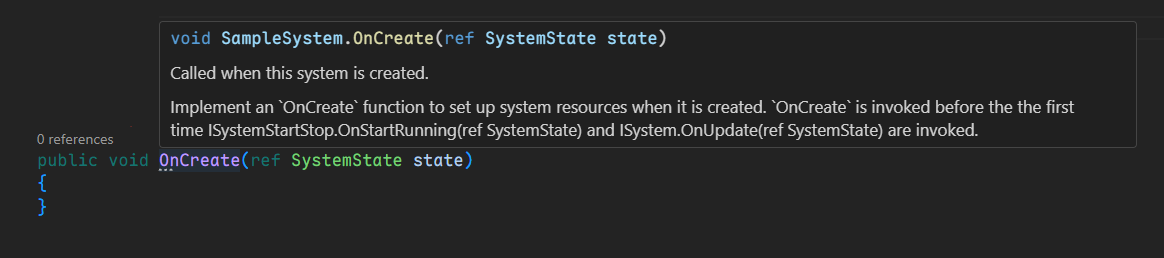

• After:

Installation

Requirements

• Unity 2022.3 or later

Unity Package Manager

1. Open menu Window -> Package Manager.

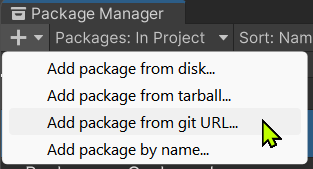

2. Click the + button at the top-left corner, then choose Add package from git URL....

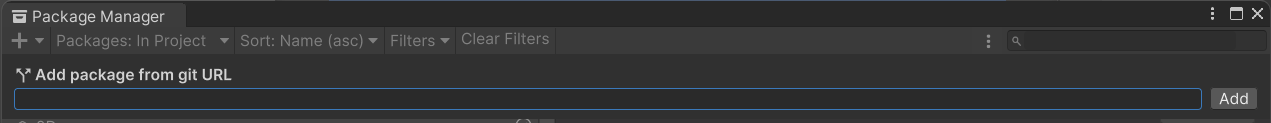

3. Enter the package URL

   https://github.com/laicasaane/UnityXmlDocGenerator.git?path=/Packages/com.laicasaane.xml-doc-generator#1.0.5




OpenUPM

1. Install OpenUPM CLI.
2. Run the following command in your Unity project root directory:

openupm add com.laicasaane.xml-doc-generator

Usage

Generate XML Documentation

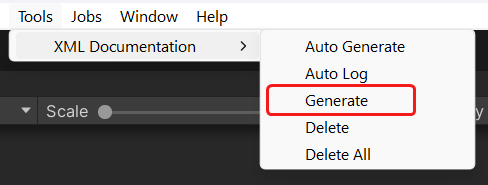

Use the menu Tools > XML Documentation > Generate.

This will generate a csc.rsp file into each the folder containing an asmdef file, within the Library/PackageCache directory.

The contents of this file should look like this:

-doc:./Library/XmlDocumentationGenerated/<ASMDEF_NAME>.xml
-nowarn:419
-nowarn:1570
-nowarn:1572
-nowarn:1573
-nowarn:1574
-nowarn:1584
-nowarn:1587
-nowarn:1591
-nowarn:1658

Because Unity will delete all files within Library/ScriptAssemblies on every domain reload, the XML documentation files cannot be permanently stored there. As a result, they must be generated into the Library/XmlDocumentationGenerated, then copied over to the Library/ScriptAssemblies on domain reload.

[!NOTE] Original csc.rsp files within the Library/PackageCache directory will be renamed to .csc-rsp-backup before new contents are appended to them.

[!NOTE] Additional .XMLDOC_CSC_RSP_GENERATED files will be generated into the same folder to indicate that the csc.rsp file has been modified by this tool, and to prevent subsequent executions from modifying it again.

Auto Generate on Domain Reload

By default, when a UPM package is installed, updated or uninstalled, we must invoke Tools > XML Documentation > Generate again. Because modified files within Library/PackageCache will be reverted to their original state, while local added files will be deleted.

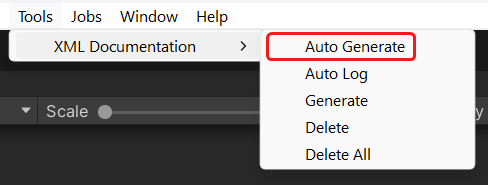

Automatic generation can be achieved by enabling the menu option Tools > XML Documentation > Auto Generate.

[!NOTE] Additionally, there is the menu option Tools > XML Documentation > Auto Log to notify when the XML documentation files are automatically generated on domain reload.

[!NOTE] Any XML file locates at Library/XmlDocumentationGenerated will be copied to Library/ScriptAssemblies even if Auto Generate is disabled.

Delete csc.rsp files

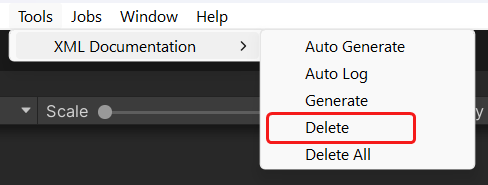

Use the menu Tools > XML Documentation > Delete.

This will delete all generated files within the Library/PackageCache directory and revert the original csc.rsp files if any were modified by this tool.

However, the Library/XmlDocumentationGenerated directory will be kept intact.

Delete everything

Use the menu Tools > XML Documentation > Delete All.

It works the same as Delete but also deletes the Library/XmlDocumentationGenerated directory.

Credits

• Emad on GameDev StackExchange^2
