Minimal Compute Shader Examples

Minimal test scenes contains compute shaders, compute buffers etc Playing with the transport between CPU <-> GPU

Unity version : 6000.3 (Unity 6.3), contains both BuiltinRP and Universal Render Pipeline (URP) scenes
See branches for older Unity versions
Tested with : Win DX11

Scene	Image	Description
🔷 01_Compute_Texture 🔷

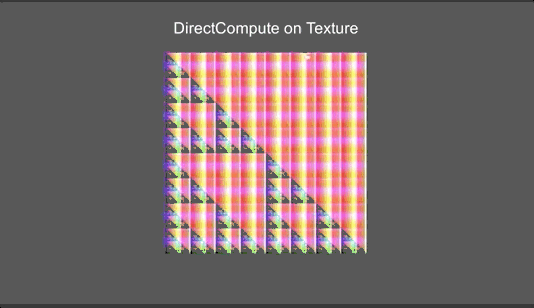

`01_1_Basic`		The most basic one, edit texture with compute shader, shader takes the texture for rendering

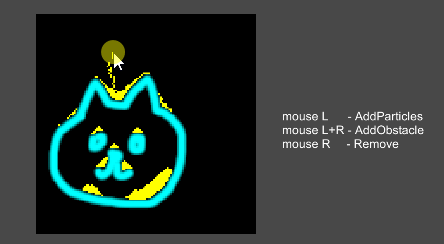

`01_2_FallingSand`		Example of using compute to animate texture pixels

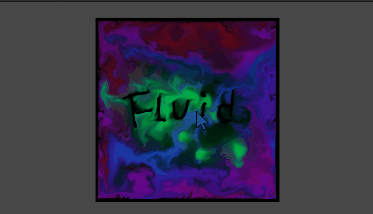

`01_3_Fluid_2D`		GPU Fluid. Ref to Scrawk/GPU-GEMS-2D-Fluid-Simulation

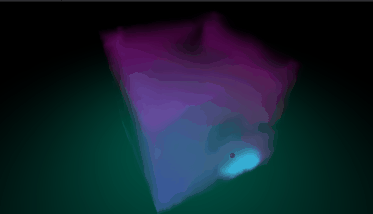

`01_4_Fluid_3D`		A 3D version based on above GPU Fluid
🔷 02_StructuredBuffer 🔷

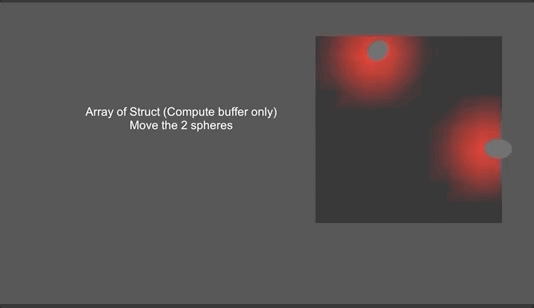

`02_1_StructuredBufferNoCompute`		ComputeBuffer can also be used in Shader, not just ComputeShader. The folder contains implementation of unlit vert-frag, surface shader and unlit URP shader

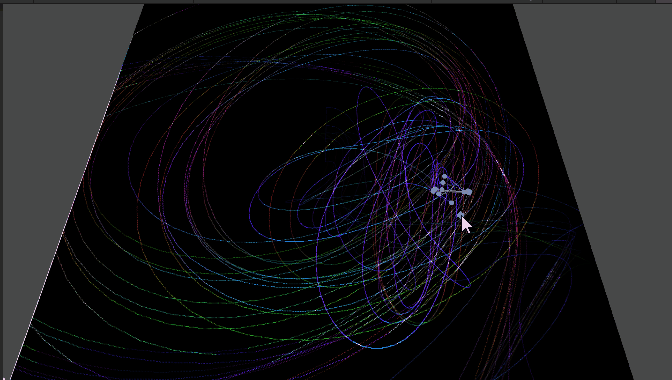

`02_2_ComputePaintTexture`		Paint the texture by sending object positions to compute shader with StructuredBuffer

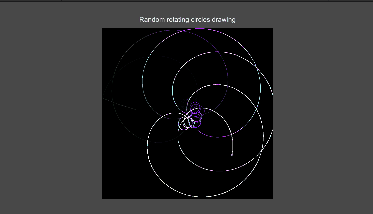

`02_3_RotatingCircles`		Similar to above, just another playground scene

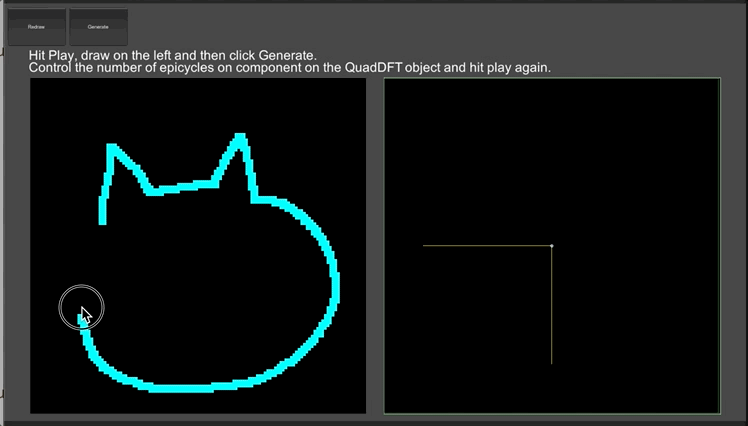

`02_4_ComputePaintTexture_DFT`		Similar to above but drawing with Epicycles using Discrete Fourier Transform. Ref to The Coding Train's youtube video

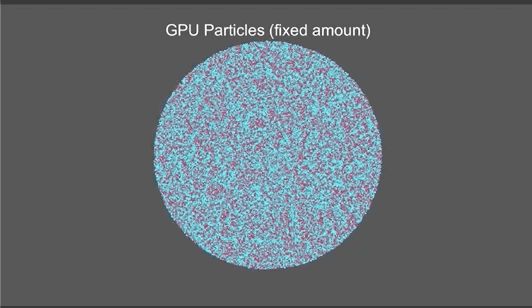

`02_5_ComputeParticlesDirect`		GPU Particle, drawing fixed no. of particles
`02_6_ComputeSketch`		Draw quads on the screen with color filled by compute shader

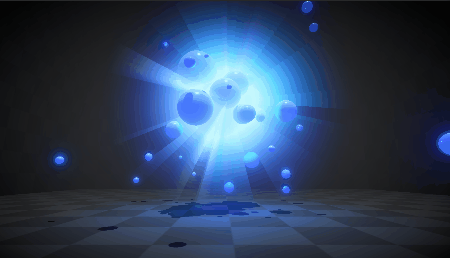

`02_7_ShimmerSphere`		Pass spheres position and radius to quad material for a fake shimmer effect
🔷 03_GPU_to_CPU 🔷

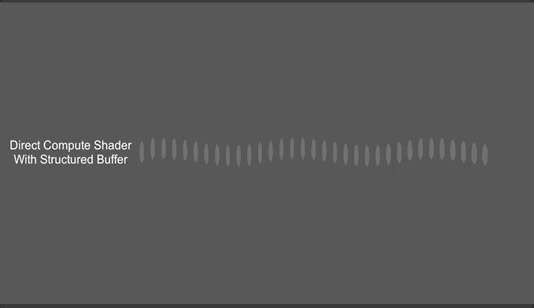

`03_1_StructuredBufferWithCompute`		Another basic one, use compute to calculate some data and send back to CPU

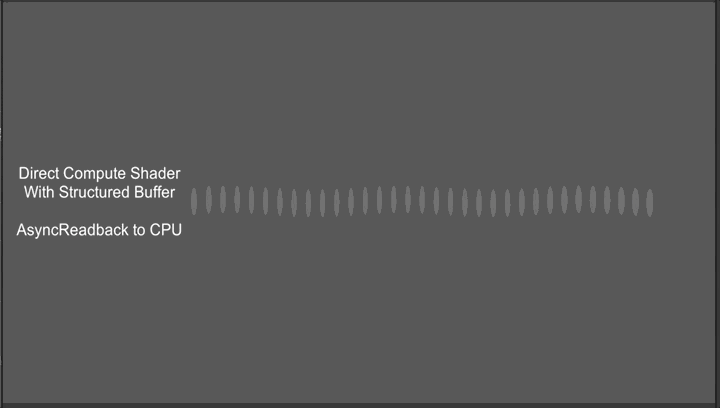

`03_2_AsyncGPUReadback`		Similar to `StructuredBufferWithCompute`, but use AsyncGPUReadback to get array data back to CPU

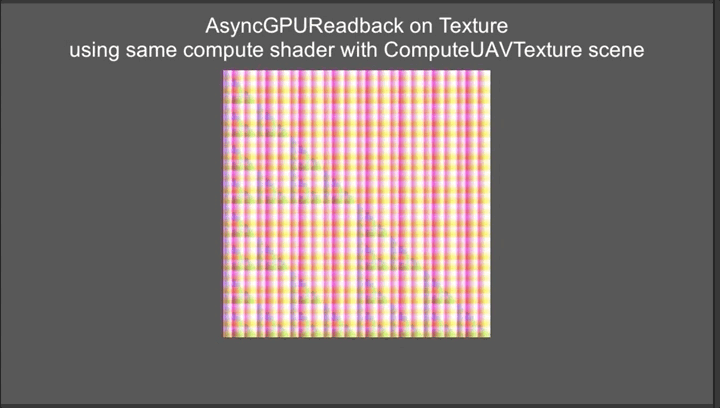

`03_3_AsyncGPUReadbackTex`		Result is same as `ComputeUAVTexture`, but this scene uses AsyncGPUReadback to get texture data back to CPU, and CPU send the texture data to Shader for rendering

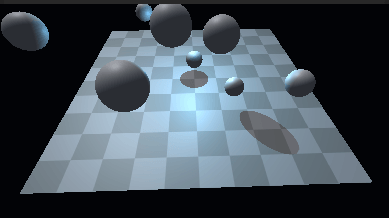

`03_4_AsyncGPUReadbackMesh`		Update mesh vertices with compute + AsyncGPUReadback to get the vertex data back to CPU for physics
`03_5_AsyncGPUReadbackMesh_NewMeshAPI`		Same as above but using the new Mesh API

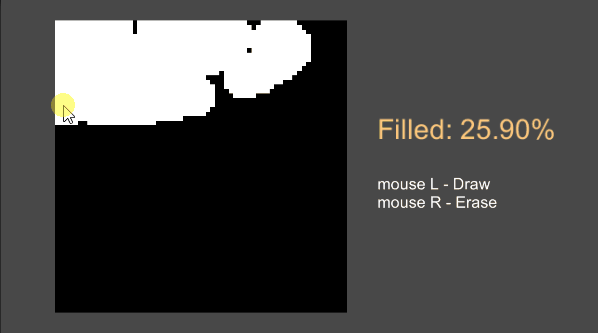

`03_6_PixelPercentage`		Count the filled pixel percentage

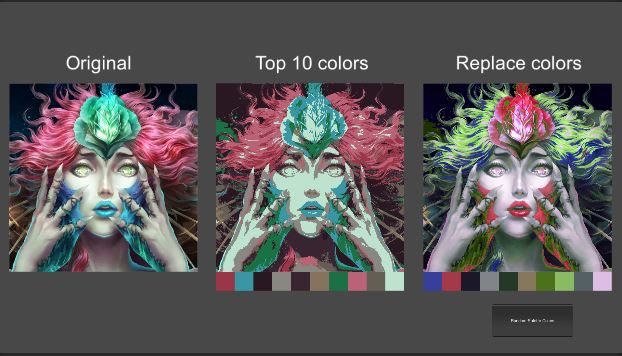

`03_7_ColorPalette`		Find the top colors and replace them
🔷 04_Indirect 🔷

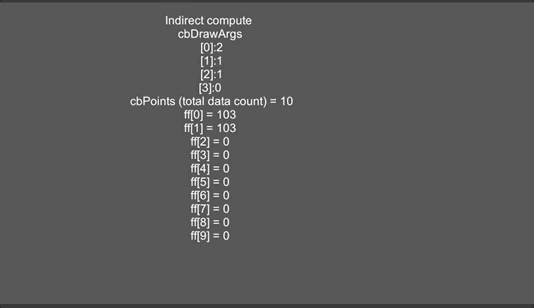

`04_1_IndirectCompute`		Simple indirect compute (indirect dispatch) and CopyCount

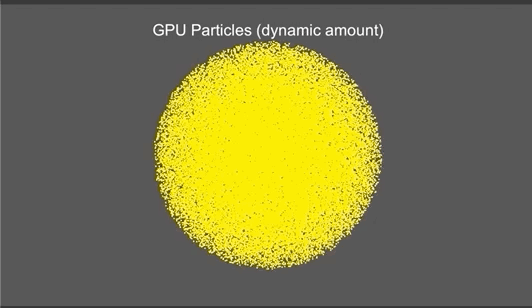

`04_2_ComputeParticlesIndirect`		GPU Particle, drawing dynamic no. of particles, no need to read back to CPU!

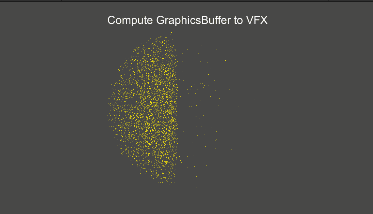

`04_3_ComputeParticlesIndirect_VFX`		Implementation of above scene with VFX graph

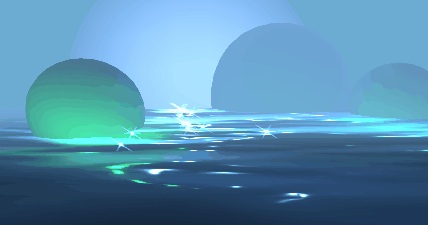

`04_4_IndirectReflectedStar`		Draw stars on the screen only if the pixels are bright enough
🔷 05_Shader_to_CPU 🔷

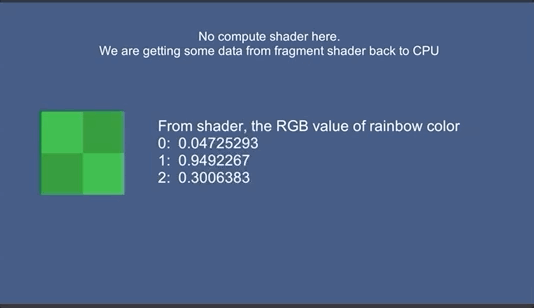

`05_1_UAVInShader`		Read some data back to CPU from fragment shader

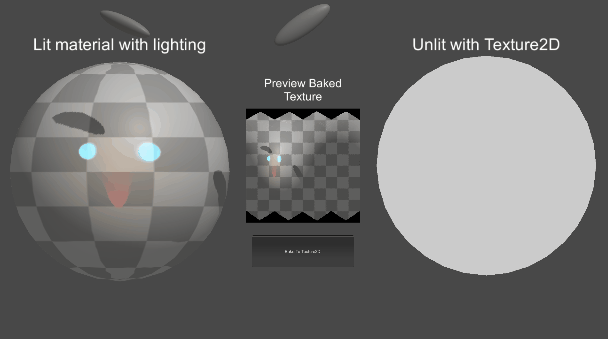

`05_2_ShaderBakeToTexture`		Bake shader pixel result to texture
🔷 06_Compute_Mesh 🔷

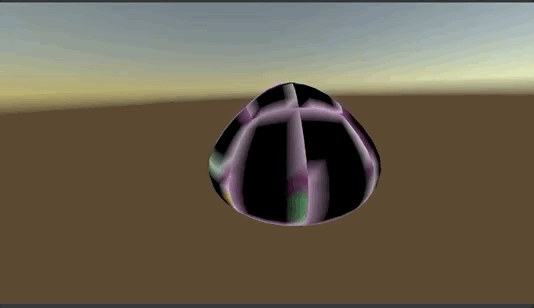

`06_1_ComputeVertex`		Replace vertex buffer with StructuredBuffer and drive vertex displacement by compute

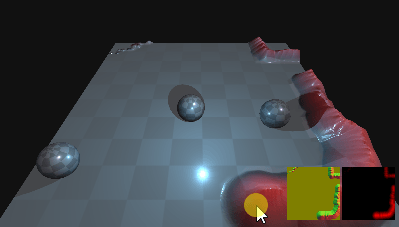

`06_2_ComputeVertexLit`		A usecase of above, with different shader passes share the same vertex data

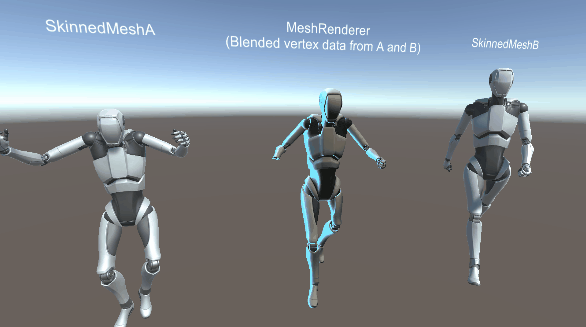

`06_3_SkinnedMeshBuffer_SameMesh`		Blend the vertex data from 2 SkinnedMeshRenderer vertex buffer and render it with MeshRenderer

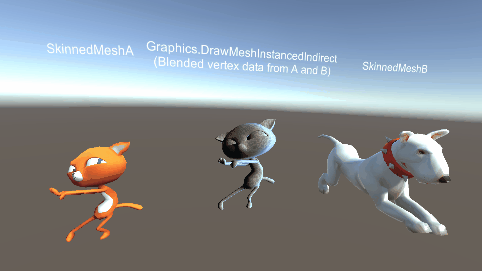

`06_4_SkinnedMeshBuffer_DiffMesh`		Similar to above but blending 2 different SkinnedMeshes. The blended triangles are drawn with DrawMeshInstancedIndirect()

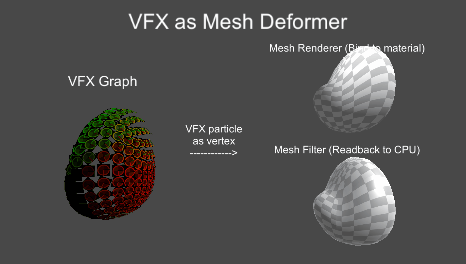

`06_5_VFXGraphMeshDeform`		Using VFX Graph to deforming mesh (particle as vertex)
